The Ge thermometers are made from heavy doped and compensated bulk Ge. Doping is carried out using a set of impurities with various activation energies by the metallurgical method. These thermometers cover the temperature range for operation from 0.3 to 300 K.

Temperature dependencies of resistance and sensitivity S=dR/dT for the different types of the Ge-bulk thermometers

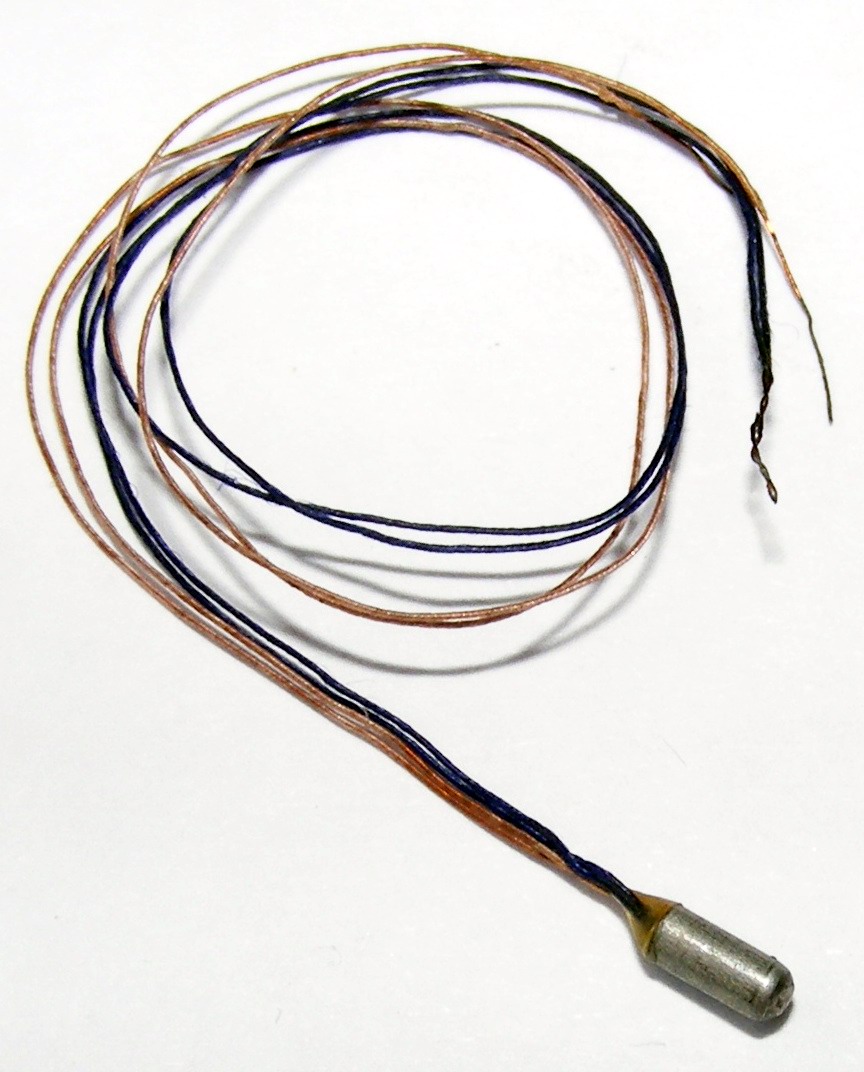

Cylindrical canister package (CP model):- 1.8 mm in diameter and 3.0 mm long

Effect of magnetic field on thermometers

Depending on the magnetic field value and temperature, the magneto-resistance for different types of thermometers can be positive or negative.  The presence of magneto-resistance effect results in an error of temperature determination.  Such an error can be presented as the ratio DT/T (%), where DT = T(B) - T,  T is a temperature measured at B = 0, and T(B) is some temperature measured in the magnetic field B.

Typical temperature errors, DT/T (%), as function of magnetic field , B (Tesla), and temperature, T (K),  for Ge-bulk thermometers of  G-4/273 model


1.  L.I. Zarubin, I.Y. Nemish, A. Szmyrka-Grzebyk,  Germanium resistance thermometers with low magnetoresistance, Cryogenics, 30 (1990) 533-538.


2. M. Besley, A. Szmyrka-Grzebyk,  Stability studies on Kiev cryogenic germanium resistance thermometers, Rev. Sci. Instrum., 61(4), (1990) 1303.


3. F. Pavese, P.P.M. Steur, D. Ferri, D. Giraudi, Wang Li, L.I. Zarubin, I.Y. Nemish, Magnetoresistance of Kiev cryogenic doped germanium thermometers up to 6 T, Cryogenics, 30 (1990) 437-441.

4.   V.F.Mitin, P.C.McDonald, F.Pavese, N.S.Boltovets, V.V.Kholevchuk, I.Yu.Nemish, V.V.Basanets, V.K.Dugaev, P.V.Sorokin, E.F.Venger, E.V.Mitin. New temperature and magnetic field sensors for cryogenic applications developed under a European Project. ICEC 20, 11-14 May 2004, Beijing, China, pp.971-974. (Zhang, Liang (EDT) /Lin, Liangzhen (EDT) /Chen, Guobang (EDT) /Publisher: Elsevier Science Ltd Published 2006/03, ISBN:0080445594 (Hard cover book).
